一文搞懂基于 Helm 部署 Prometheus Stack 全家桶

字数 31340阅读 2678评论 0赞 4

内容摘要：

文章介绍如何使用Helm图表快速部署安装PrometheusStack，包括架构图解析、Kube-Prometheus-Stack解析、部署安装等。通过调整Pod副本数量，减少资源消耗，成功部署PrometheusStack。

当前摘要为AI生成

Hello folks! 今天我们介绍一下基于 Helm 快速部署安装 Prometheus Stack 的文章，在本文中，我们将讨论 Prometheus 和 Grafana，以及如何使用 Helm 图表为任何 Kubernetes 集群设置监控。我们还将学习如何将 Prometheus 和 Grafana 连接在一起，并在 Grafana 上设置一个基本的仪表板来监控 Kubernetes 集群上的资源。

在进入本文正题之前，我们先简单介绍一下 Prometheus Stack 相关生态概念。

**> Prometheus Stack 概述**

Prometheus Stack，通常指的是 Prometheus 和 Grafana 以及相关关联集成组件的统称。在实际的业务场景中，Prometheus 和 Grafana 往往都是协同工作进行监控 渲染： Prometheus 负责作为数据源获取数据，并将该数据提供给 Grafana，Grafana 则用于借助其吸引力的仪表板进行可视化数据展示。

基于 Prometheus，

1、Prometheus 是一个开源系统监控和警报工具包；

2、Prometheus 收集指标并将其存储为时间序列数据，它为 Kubernetes 等容器编排平台提供开箱即用的监控功能。

基于 Grafana，

1、Grafana 是一个多平台开源分析和交互式可视化 Web 应用程序；

2、当连接到支持的数据服务时， Grafana 会为网络提供图表、图形和警报；

3、Grafana 允许我们查询、可视化、提醒和理解我们的指标，无论它们存储在何处。除了Prometheus 之外，一些受支持的数据源还有 AWS Cloud Watch、Azure Monitor、PostgreSQL、 Elasticsearch 等等；

4、除此之外，我们可以基于实际的场景需求创建自己的仪表板或使用 Grafana 提供的现有仪表板定义个性化仪表板等。

于 2018 年 8 月 CNCF 毕业，Prometheus 作为下一代开源解决方案，其建设思路与 Google SRE 理念不谋而合。我们来看一下其架构图：

![](/home/attachment/202303/15/162937_167884291944953.png)

基于上述架构组件图所示，我们对核心的组件进行简要的解析，具体如下：

1、Prometheus Server：存储和抓取时间序列数据的主要服务器。

2、TSDB（时间序列数据库）：指标是任何系统了解其健康状况和运行状态的关键方面。任何系统的设计都需要收集、存储和报告指标，以提供系统的脉搏。数据存储在一系列时间间隔内，需要一个高效的数据库来存储和检索这些数据。OpenTSDB 时序数据库就是这样一种可以满足这种需求的时序数据库。

3、PromQL： Prometheus 以 PromQL 的形式定义了一种丰富的查询语言，用于从时序数据库中查询数据。

4、Pushgateway：可用于支持短期工作。

5、导出器：它们用于将指标数据提升到普罗米修斯服务器。

6、Alertmanager：用于将通知发送到各种通信渠道，如 Slack、Email 以通知用户。

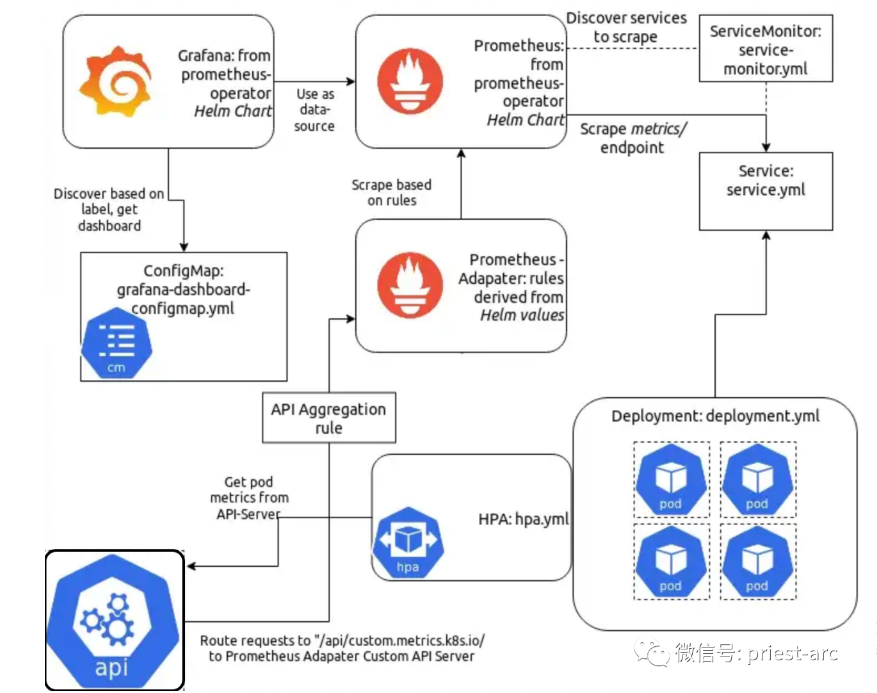

基于 Kubernetes Cluster 环境下的生态组件交互架构图，如下所示：

![](/home/attachment/202303/15/162937_167884293842723.png)

**> Kube-Prometheus-Stack 解析**

Kube-Prometheus-Stack ****仓库收集 Kubernetes 清单、 Grafana 仪表板和 Prometheus 规则，结合相关文档和脚本，基于 Prometheus Operator 提供易于操作的端到端 Kubernetes 集群监控。

此项目基于 jsonnet 编写，既可以被描述为一个包，也可以被描述为一个库。主要包含如下组件：

* The Prometheus Operator
* Highly available Prometheus
* Highly available Alertmanager
* Prometheus node-exporter
* Prometheus Adapter for Kubernetes Metrics APIs
* kube-state-metrics
* Grafana

kube-prometheus-stack 主要用于集群监控，因此它被预先配置为从所有 Kubernetes 组件收集指标。除此之外，它还提供一组默认的仪表板和警报规则，它提供可组合的 jsonnet 作为库，供用户根据自己的需要进行定制。

在进行部署之前，我们需要评估当前 Kubernetes 集群 环境与 Kube-Prometheus-Stack 组件的版本兼容性，具体可参考如下：

| kube-prometheus stack | Kubernetes 1.20 | Kubernetes 1.21 | Kubernetes 1.22 | Kubernetes 1.23 | Kubernetes 1.24 |
| ------------ | ------------ | ------------ | ------------ | ------------ | ------------ |
| release-0.8 | ✔ | ✔ | ✗ | ✗ | ✗ |
| release-0.9 | ✗ | ✔ | ✔ | ✗ | ✗ |
| release-0.10 | ✗ | ✗ | ✔ | ✔ | ✗ |
| release-0.11 | ✗ | ✗ | ✗ | ✔ | ✔ |
| main | ✗ | ✗ | ✗ | ✗ | ✔ |

**> 部署安装**

本次的 Kube-Prometheus-Stack 全家桶组件，我们主要基于 Helm 进行快速、高效部署。在部署之前我们需要先部署 Kubernetes 集群 环境，这里主要基于 Minikube 部署单机版环境，具体如下所示：

[leonli@Leon k8s ] % kubectl get po -A -o wide
	NAMESPACE     NAME                                  READY   STATUS    RESTARTS   AGE   IP             NODE          NOMINATED NODE   READINESS GATES
	kube-system   coredns-64897985d-v9jcf               1/1     Running   0          38s   172.17.0.2     k8s-cluster
	kube-system   etcd-k8s-cluster                      1/1     Running   0          51s   192.168.49.2   k8s-cluster
	kube-system   kube-apiserver-k8s-cluster            1/1     Running   0          51s   192.168.49.2   k8s-cluster
	kube-system   kube-controller-manager-k8s-cluster   1/1     Running   0          51s   192.168.49.2   k8s-cluster
	kube-system   kube-proxy-rpvg8                      1/1     Running   0          38s   192.168.49.2   k8s-cluster
	kube-system   kube-scheduler-k8s-cluster            1/1     Running   0          51s   192.168.49.2   k8s-cluster
	kube-system   storage-provisioner                   1/1     Running   0          50s   192.168.49.2   k8s-cluster

接下来，我们来安装 Helm 组件，为了保证后续的全家桶正确部署，需要基于当前的 Kubernetes 集群 环境部署兼容的 Helm 组件，如下为 Helm 组件版本与 Kubernetes 版本的对应关系：

| Helm Version | Supported Kubernetes Versions |
| ------------ | ------------ |
| 3.9.x | 1.24.x - 1.21.x |
| 3.8.x | 1.23.x - 1.20.x |
| 3.7.x | 1.22.x - 1.19.x |
| 3.6.x | 1.21.x - 1.18.x |
| 3.5.x | 1.20.x - 1.17.x |
| 3.4.x | 1.19.x - 1.16.x |
| ... | ... |

我们 Check 一下所准备的环境信息，具体如下所示：

[leonli@Leon kube-prometheus ] % helm version
	version.BuildInfo{Version:"v3.8.1", GitCommit:"5cb9af4b1b271d11d7a97a71df3ac337dd94ad37", GitTreeState:"clean", GoVersion:"go1.17.8"}
	[leonli@Leon kube-prometheus ] % kubectl version
	Client Version: version.Info{Major:"1", Minor:"23", GitVersion:"v1.23.4", GitCommit:"e6c093d87ea4cbb530a7b2ae91e54c0842d8308a", GitTreeState:"clean", BuildDate:"2022-02-16T12:30:48Z", GoVersion:"go1.17.6", Compiler:"gc", Platform:"darwin/arm64"}
	Server Version: version.Info{Major:"1", Minor:"23", GitVersion:"v1.23.3", GitCommit:"816c97ab8cff8a1c72eccca1026f7820e93e0d25", GitTreeState:"clean", BuildDate:"2022-01-25T21:19:12Z", GoVersion:"go1.17.6", Compiler:"gc", Platform:"linux/arm64"}

接下来，我们正式进入安装 kube-prometheus-stack 环节，具体如下所示：

[leonli@Leon minikube ] % kubectl create ns monitoring
	namespace/monitoring created

[leonli@Leon minikube ] % helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
	"prometheus-community" has been added to your repositories
	[leonli@Leon minikube ] % helm repo update
	Hang tight while we grab the latest from your chart repositories
	......Successfully got an update from the "traefik" chart repository
	...Successfully got an update from the "komodorio" chart repository
	...Successfully got an update from the "traefik-hub" chart repository
	...Successfully got an update from the "prometheus-community" chart repository
	Update Complete. ⎈Happy Helming!⎈
	[leonli@Leon minikube ] % helm install prometheus-community/kube-prometheus-stack --namespace monitoring --generate-name
	Error: INSTALLATION FAILED: failed to download "prometheus-community/kube-prometheus-stack"

在通过 “ helm install ” 进行操作时可能因网络原因导致安装失败，我们可以尝试多试几次或者直接从 GitHub 上下载文件 进行，具体如下所示：

[leonli@Leon minikube ] % git clone https://github.com/prometheus-operator/kube-prometheus.git -b release-0.10
	Cloning into 'kube-prometheus'...
	remote: Enumerating objects: 17291, done.
	remote: Counting objects: 100% (197/197), done.
	remote: Compressing objects: 100% (99/99), done.
	remote: Total 17291 (delta 126), reused 146 (delta 91), pack-reused 17094
	Receiving objects: 100% (17291/17291), 9.18 MiB | 6.19 MiB/s, done.
	Resolving deltas: 100% (11319/11319), done.

此时，进入 kube-prometheus 目录下， 安装 manifest/setup 目录下的所有 yaml 文件，具体如下：

[leonli@Leon kube-prometheus ] % kubectl apply --server-side -f manifests/setup --force-conflicts
    customresourcedefinition.apiextensions.k8s.io/alertmanagerconfigs.monitoring.coreos.com serverside-applied
    customresourcedefinition.apiextensions.k8s.io/alertmanagers.monitoring.coreos.com serverside-applied
	customresourcedefinition.apiextensions.k8s.io/podmonitors.monitoring.coreos.com serverside-applied
	customresourcedefinition.apiextensions.k8s.io/probes.monitoring.coreos.com serverside-applied
    customresourcedefinition.apiextensions.k8s.io/prometheuses.monitoring.coreos.com serverside-applied
    customresourcedefinition.apiextensions.k8s.io/prometheusrules.monitoring.coreos.com serverside-applied
    customresourcedefinition.apiextensions.k8s.io/servicemonitors.monitoring.coreos.com serverside-applied
	customresourcedefinition.apiextensions.k8s.io/thanosrulers.monitoring.coreos.com serverside-applied
	namespace/monitoring serverside-applied

kube-prometheus 默认安装在 monitoring 命名空间中， 因 有些镜像在国外，故此 安装过程是非常缓慢的，有时会因为网络原因拉取不到而安装失败。

[leonli@Leon kube-prometheus ] % cd manifests/setup
	[leonli@Leon setup ] % ls -l
	total 3040
	-rw-r--r--  1 leonli  admin  169131 Dec  2 14:53 0alertmanagerConfigCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin  377495 Dec  2 14:53 0alertmanagerCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin   30361 Dec  2 14:53 0podmonitorCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin   31477 Dec  2 14:53 0probeCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin  502646 Dec  2 14:53 0prometheusCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin    4101 Dec  2 14:53 0prometheusruleCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin   31881 Dec  2 14:53 0servicemonitorCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin  385790 Dec  2 14:53 0thanosrulerCustomResourceDefinition.yaml
	-rw-r--r--  1 leonli  admin      60 Dec  2 14:53 namespace.yaml
	[leonli@Leon setup ] % until kubectl get servicemonitors --all-namespaces ; do date; sleep 1; echo ""; done
	[leonli@Leon setup ] % cd ../..
	[leonli@Leon kube-prometheus ] % kubectl apply -f manifests/
	alertmanager.monitoring.coreos.com/main created
	poddisruptionbudget.policy/alertmanager-main created
	prometheusrule.monitoring.coreos.com/alertmanager-main-rules created
	secret/alertmanager-main created
	service/alertmanager-main created
	serviceaccount/alertmanager-main created
	servicemonitor.monitoring.coreos.com/alertmanager-main created
	clusterrole.rbac.authorization.k8s.io/blackbox-exporter created
	clusterrolebinding.rbac.authorization.k8s.io/blackbox-exporter created
	configmap/blackbox-exporter-configuration created
	deployment.apps/blackbox-exporter created
	service/blackbox-exporter created
	serviceaccount/blackbox-exporter created
	servicemonitor.monitoring.coreos.com/blackbox-exporter created
	secret/grafana-config created
	secret/grafana-datasources created
	configmap/grafana-dashboard-alertmanager-overview created
	configmap/grafana-dashboard-apiserver created
	configmap/grafana-dashboard-cluster-total created
	configmap/grafana-dashboard-controller-manager created
	configmap/grafana-dashboard-k8s-resources-cluster created
	configmap/grafana-dashboard-k8s-resources-namespace created
	configmap/grafana-dashboard-k8s-resources-node created
	configmap/grafana-dashboard-k8s-resources-pod created
	configmap/grafana-dashboard-k8s-resources-workload created
	configmap/grafana-dashboard-k8s-resources-workloads-namespace created
	configmap/grafana-dashboard-kubelet created
	configmap/grafana-dashboard-namespace-by-pod created
	configmap/grafana-dashboard-namespace-by-workload created
	configmap/grafana-dashboard-node-cluster-rsrc-use created
	configmap/grafana-dashboard-node-rsrc-use created
	configmap/grafana-dashboard-nodes created
	configmap/grafana-dashboard-persistentvolumesusage created
	configmap/grafana-dashboard-pod-total created
	configmap/grafana-dashboard-prometheus-remote-write created
	configmap/grafana-dashboard-prometheus created
	configmap/grafana-dashboard-proxy created
	configmap/grafana-dashboard-scheduler created
	configmap/grafana-dashboard-workload-total created
	configmap/grafana-dashboards created
	deployment.apps/grafana created
	service/grafana created
	serviceaccount/grafana created
	servicemonitor.monitoring.coreos.com/grafana created
	prometheusrule.monitoring.coreos.com/kube-prometheus-rules created
	clusterrole.rbac.authorization.k8s.io/kube-state-metrics created
	clusterrolebinding.rbac.authorization.k8s.io/kube-state-metrics created
	deployment.apps/kube-state-metrics created
	prometheusrule.monitoring.coreos.com/kube-state-metrics-rules created
	service/kube-state-metrics created
	serviceaccount/kube-state-metrics created
	servicemonitor.monitoring.coreos.com/kube-state-metrics created
	’prometheusrule.monitoring.coreos.com/kubernetes-monitoring-rules created
	servicemonitor.monitoring.coreos.com/kube-apiserver created
	servicemonitor.monitoring.coreos.com/coredns created
	servicemonitor.monitoring.coreos.com/kube-controller-manager created
	servicemonitor.monitoring.coreos.com/kube-scheduler created
	servicemonitor.monitoring.coreos.com/kubelet created
	clusterrole.rbac.authorization.k8s.io/node-exporter created
	clusterrolebinding.rbac.authorization.k8s.io/node-exporter created
	daemonset.apps/node-exporter created
	prometheusrule.monitoring.coreos.com/node-exporter-rules created
	service/node-exporter created
	serviceaccount/node-exporter created
	servicemonitor.monitoring.coreos.com/node-exporter created
	clusterrole.rbac.authorization.k8s.io/prometheus-k8s created
	clusterrolebinding.rbac.authorization.k8s.io/prometheus-k8s created
	poddisruptionbudget.policy/prometheus-k8s created
	prometheus.monitoring.coreos.com/k8s created
	prometheusrule.monitoring.coreos.com/prometheus-k8s-prometheus-rules created
	rolebinding.rbac.authorization.k8s.io/prometheus-k8s-config created
	rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
	rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
	rolebinding.rbac.authorization.k8s.io/prometheus-k8s created
	role.rbac.authorization.k8s.io/prometheus-k8s-config created
	role.rbac.authorization.k8s.io/prometheus-k8s created
	role.rbac.authorization.k8s.io/prometheus-k8s created
	role.rbac.authorization.k8s.io/prometheus-k8s created
	service/prometheus-k8s created
	serviceaccount/prometheus-k8s created
	servicemonitor.monitoring.coreos.com/prometheus-k8s created
	apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
	clusterrole.rbac.authorization.k8s.io/prometheus-adapter created
	clusterrole.rbac.authorization.k8s.io/system:aggregated-metrics-reader created
	clusterrolebinding.rbac.authorization.k8s.io/prometheus-adapter created
	clusterrolebinding.rbac.authorization.k8s.io/resource-metrics:system:auth-delegator created
	clusterrole.rbac.authorization.k8s.io/resource-metrics-server-resources created
	configmap/adapter-config created
	deployment.apps/prometheus-adapter created
	poddisruptionbudget.policy/prometheus-adapter created
	rolebinding.rbac.authorization.k8s.io/resource-metrics-auth-reader created
	service/prometheus-adapter createdserviceaccount/prometheus-adapter created
	servicemonitor.monitoring.coreos.com/prometheus-adapter created
	clusterrole.rbac.authorization.k8s.io/prometheus-operator created
	clusterrolebinding.rbac.authorization.k8s.io/prometheus-operator created
	deployment.apps/prometheus-operator created
	prometheusrule.monitoring.coreos.com/prometheus-operator-rules created
	service/prometheus-operator created
	serviceaccount/prometheus-operator created
	servicemonitor.monitoring.coreos.com/prometheus-operator created

此时，查看所创建的资源进度情况，如下所示：

[leonli@Leon kube-prometheus ] % kubectl get all -n monitoring
	NAME                                       READY   STATUS              RESTARTS   AGE
	pod/blackbox-exporter-6b79c4588b-xxjkm     0/3     ContainerCreating   0          14s
	pod/grafana-7fd69887fb-rn65j               0/1     ContainerCreating   0          14s
	pod/kube-state-metrics-55f67795cd-xlxw6    0/3     ContainerCreating   0          13s
	pod/node-exporter-kxdrw                    0/2     ContainerCreating   0          13s
	pod/prometheus-adapter-5565cc8d76-6tnfr    0/1     ContainerCreating   0          13s
	pod/prometheus-adapter-5565cc8d76-jkcwp    0/1     ContainerCreating   0          13s
	pod/prometheus-operator-6dc9f66cb7-lkfdl   0/2     ContainerCreating   0          13s

NAME                          TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)              AGE
	service/alertmanager-main     ClusterIP   10.101.159.117           9093/TCP,8080/TCP    14s
	service/blackbox-exporter     ClusterIP   10.96.196.202            9115/TCP,19115/TCP   14s
	service/grafana               ClusterIP   10.102.241.149           3000/TCP             14s
	service/kube-state-metrics    ClusterIP   None                     8443/TCP,9443/TCP    14s
	service/node-exporter         ClusterIP   None                     9100/TCP             13s
	service/prometheus-adapter    ClusterIP   10.103.77.245            443/TCP              13s
	service/prometheus-k8s        ClusterIP   10.107.208.95            9090/TCP,8080/TCP    13s
	service/prometheus-operator   ClusterIP   None                     8443/TCP             13s

NAME                           DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
	daemonset.apps/node-exporter   1         1         0       1            0           kubernetes.io/os=linux   13s

NAME                                  READY   UP-TO-DATE   AVAILABLE   AGE
	deployment.apps/blackbox-exporter     0/1     1            0           14s
	deployment.apps/grafana               0/1     1            0           14s
	deployment.apps/kube-state-metrics    0/1     1            0           14s
	deployment.apps/prometheus-adapter    0/2     2            0           13s
	deployment.apps/prometheus-operator   0/1     1            0           13s

NAME                                             DESIRED   CURRENT   READY   AGE
	replicaset.apps/blackbox-exporter-6b79c4588b     1         1         0       14s
	replicaset.apps/grafana-7fd69887fb               1         1         0       14s
	replicaset.apps/kube-state-metrics-55f67795cd    1         1         0       14s
	replicaset.apps/prometheus-adapter-5565cc8d76    2         2         0       13s
	replicaset.apps/prometheus-operator-6dc9f66cb7   1         1         0       13s

[leonli@Leon manifests ] % kubectl get pods -n monitoring -o wide
	NAME                                   READY   STATUS             RESTARTS   AGE     IP             NODE             NOMINATED NODE   READINESS GATES
	alertmanager-main-0                    2/2     Running            0          13m     172.17.0.11    devops-cluster
	alertmanager-main-1                    2/2     Running            0          13m     172.17.0.9     devops-cluster
	alertmanager-main-2                    2/2     Running            0          13m     172.17.0.10    devops-cluster
	blackbox-exporter-6b79c4588b-xxjkm     3/3     Running            0          14m     172.17.0.2     devops-cluster
	grafana-7fd69887fb-rn65j               1/1     Running            0          14m     172.17.0.3     devops-cluster
	kube-state-metrics-55f67795cd-xlxw6    2/3     ImagePullBackOff   0          14m     172.17.0.5     devops-cluster
	kube-state-metrics-7ff75cff8b-qg57k    2/3     ImagePullBackOff   0          2m24s   172.17.0.7     devops-cluster
	node-exporter-kxdrw                    2/2     Running            0          14m     192.168.49.2   devops-cluster
	prometheus-adapter-5698bb779b-2p5mm    1/1     Running            0          5m17s   172.17.0.6     devops-cluster
	prometheus-adapter-5698bb779b-2ptn4    1/1     Running            0          5m17s   172.17.0.12    devops-cluster
	prometheus-k8s-0                       0/2     Pending            0          13m
	prometheus-k8s-1                       0/2     Pending            0          13m
	prometheus-operator-6dc9f66cb7-lkfdl   2/2     Running            0          14m     172.17.0.8     devops-cluster

在 Pod 安装过程中，可能因为不同的原因导致其状态无法处于健康状态，我们可以通过命令行 kubecl describe pod [pod_n ame] -n [namespace] 去查看其安装详情，以定位到底是什么原因导致 Pod 状态无法正常运行。我们以 “Pending” 状态为例的 prometheus-k8s-0 为例，具体如下：

[leonli@Leon manifests ] % kubectl describe pod prometheus-k8s-0 -n monitoring
	Name:           prometheus-k8s-0
	Namespace:      monitoring
	Priority:       0
	Node:          <none>
	Labels:         app.kubernetes.io/component=prometheus
	                    app.kubernetes.io/instance=k8s
						app.kubernetes.io/managed-by=prometheus-operator
						app.kubernetes.io/name=prometheus
						app.kubernetes.io/part-of=kube-prometheus
						app.kubernetes.io/version=2.32.1
						controller-revision-hash=prometheus-k8s-5f9554b8cd
						operator.prometheus.io/name=k8s
						operator.prometheus.io/shard=0
						prometheus=k8s
						statefulset.kubernetes.io/pod-name=prometheus-k8s-0
    Annotations:    kubectl.kubernetes.io/default-container: prometheus
	Status:         Pending
	IP:
	IPs:
	Controlled By:  StatefulSet/prometheus-k8s
	Init Containers:
	   init-config-reloader:
	      Image:      quay.io/prometheus-operator/prometheus-config-reloader:v0.53.1
		  Port:       8080/TCP
		  Host Port:  0/TCP
		  Command:
		        /bin/prometheus-config-reloader
		   Args:
		       --watch-interval=0
			   --listen-address=:8080
			   --config-file=/etc/prometheus/config/prometheus.yaml.gz
			   --config-envsubst-file=/etc/prometheus/config_out/prometheus.env.yaml
			   --watched-dir=/etc/prometheus/rules/prometheus-k8s-rulefiles-0
			Limits:
			   cpu:     100m
			   memory:  50Mi
			Requests:
			   cpu:     100m
			   memory:  50Mi
			Environment:
			   POD_NAME:  prometheus-k8s-0 (v1:metadata.name)
			   SHARD:     0
			Mounts:
			   /etc/prometheus/config from config (rw)
			   /etc/prometheus/config_out from config-out (rw)
			   /etc/prometheus/rules/prometheus-k8s-rulefiles-0 from prometheus-k8s-rulefiles-0 (rw)
			   /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-nv7qs (ro)
	Containers:
	     prometheus:
		     Image:      quay.io/prometheus/prometheus:v2.32.1
			 Port:       9090/TCP
			 Host Port:  0/TCP
			 Args:
			     --web.console.templates=/etc/prometheus/consoles
				 --web.console.libraries=/etc/prometheus/console_libraries
				 --config.file=/etc/prometheus/config_out/prometheus.env.yaml
				 --storage.tsdb.path=/prometheus
				 --storage.tsdb.retention.time=24h
				 --web.enable-lifecycle
				 --web.route-prefix=/
				 --web.config.file=/etc/prometheus/web_config/web-config.yaml
			Requests:
			      memory:     400Mi
			Readiness:       http-get http://:web/-/ready delay=0s timeout=3s period=5s #success=1 #failure=3
			Startup:            http-get http://:web/-/ready delay=0s timeout=3s period=15s #success=1 #failure=60
			Environment:    <none>
			Mounts:
			/etc/prometheus/certs from tls-assets (ro)
			/etc/prometheus/config_out from config-out (ro)
			/etc/prometheus/rules/prometheus-k8s-rulefiles-0 from prometheus-k8s-rulefiles-0 (rw)
			/etc/prometheus/web_config/web-config.yaml from web-config (ro,path="web-config.yaml")
			/prometheus from prometheus-k8s-db (rw)
			/var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-nv7qs (ro)
	    config-reloader:
		    Image:      quay.io/prometheus-operator/prometheus-config-reloader:v0.53.1
			Port:       8080/TCP
			Host Port:  0/TCP
			Command:
			     /bin/prometheus-config-reloader
			Args:
			    --listen-address=:8080
			    --reload-url=http://localhost:9090/-/reload
			    --config-file=/etc/prometheus/config/prometheus.yaml.gz
			    --config-envsubst-file=/etc/prometheus/config_out/prometheus.env.yaml
			    --watched-dir=/etc/prometheus/rules/prometheus-k8s-rulefiles-0
			Limits:
			    cpu:     100m
				memory:  50Mi
			Requests:
			    cpu:     100m
				memory:  50Mi
			Environment:
			    POD_NAME:  prometheus-k8s-0 (v1:metadata.name)
				SHARD:     0
			Mounts:
			     /etc/prometheus/config from config (rw)
				 /etc/prometheus/config_out from config-out (rw)
				 /etc/prometheus/rules/prometheus-k8s-rulefiles-0 from prometheus-k8s-rulefiles-0 (rw)
				 /var/run/secrets/kubernetes.io/serviceaccount from kube-api-access-nv7qs (ro)
	Conditions:
         Type           Status
		 PodScheduled   False
	Volumes:
	    config:
		    Type:        Secret (a volume populated by a Secret)
			SecretName:  prometheus-k8s
			Optional:    false
		tls-assets:
		  Type:                Projected (a volume that contains injected data from multiple sources)
			SecretName:          prometheus-k8s-tls-assets-0
			SecretOptionalName:   <nil>
		config-out:
		    Type:       EmptyDir (a temporary directory that shares a pod's lifetime)
			Medium:
			SizeLimit:
		prometheus-k8s-rulefiles-0:
		    Type:      ConfigMap (a volume populated by a ConfigMap)
			Name:      prometheus-k8s-rulefiles-0
			Optional:  false
		web-config:
		    Type:        Secret (a volume populated by a Secret)
			SecretName:  prometheus-k8s-web-config
			Optional:    false
		prometheus-k8s-db:
		    Type:       EmptyDir (a temporary directory that shares a pod's lifetime)
			Medium:
			SizeLimit:   <unset>
		kube-api-access-nv7qs:
		    Type:                    Projected (a volume that contains injected data from multiple sources)
			TokenExpirationSeconds:  3607
			ConfigMapName:           kube-root-ca.crt
			ConfigMapOptional:
			DownwardAPI:             true
	QoS Class:                   Burstable
	Node-Selectors:              kubernetes.io/os=linux
	Tolerations:                 node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
	                                   node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
	Events:
	    Type     Reason            Age                From               Message
		----     ------            ----               ----               -------
		Warning  FailedScheduling  7s (x13 over 13m)  default-scheduler  0/1 nodes are available: 1 Insufficient memory.

可以看到，是因为没有足够的内存分配导致 prometheus-k8s-0 此 Pod 无法正常创建，此时，我们可以将所有的 Pod 副本数量都定义为 1，从而减少资源消耗。

我们可以通命令行查看相关 副本信息，如下所示：

[leonli@Leon manifests ] % grep -rn 'replicas:' *
	alertmanager-alertmanager.yaml:23:  replicas: 3
	blackboxExporter-deployment.yaml:12:  replicas: 1
	grafana-deployment.yaml:12:  replicas: 1
	kubeStateMetrics-deployment.yaml:12:  replicas: 1prometheus-
	prometheus.yaml:35:  replicas:
	prometheusAdapter-deployment.yaml:12:  replicas: 2
	prometheusOperator-deployment.yaml:12:  replicas: 1
	setup/0alertmanagerCustomResourceDefinition.yaml:3547:              replicas:
	setup/0alertmanagerCustomResourceDefinition.yaml:6010:              replicas
	setup/0thanosrulerCustomResourceDefinition.yaml:3670:              replicas:
	setup/0thanosrulerCustomResourceDefinition.yaml:6172:              replicas:
	setup/0prometheusCustomResourceDefinition.yaml:5119:              replicas:
	setup/0prometheusCustomResourceDefinition.yaml:8271:              replicas:

然后将其 replicas定义为 “1”，重新运行 yaml 文件，如下所示：

[leonli@Leon kube-prometheus ] % kubectl apply -f manifests/
	[leonli@Leon manifests ] % kubectl get pods -n monitoring -o wide
	NAME                                   READY   STATUS    RESTARTS   AGE     IP             NODE             NOMINATED NODE   READINESS GATES
	alertmanager-main-0                    2/2     Running   0          7m23s   172.17.0.9     devops-cluster
	blackbox-exporter-6b79c4588b-xxjkm     3/3     Running   0          26m     172.17.0.2     devops-cluster
	grafana-7fd69887fb-rn65j               1/1     Running   0          26m     172.17.0.3     devops-cluster
	kube-state-metrics-9d449c7f4-8kh8x     3/3     Running   0          16s     172.17.0.5     devops-cluster
	node-exporter-kxdrw                    2/2     Running   0          26m     192.168.49.2   devops-cluster
	prometheus-adapter-5698bb779b-2p5mm    1/1     Running   0          17m     172.17.0.6     devops-cluster
	prometheus-k8s-0                       2/2     Running   0          24m     172.17.0.10    devops-cluster
	prometheus-operator-6dc9f66cb7-lkfdl   2/2     Running   0          26m     172.17.0.8     devops-cluster

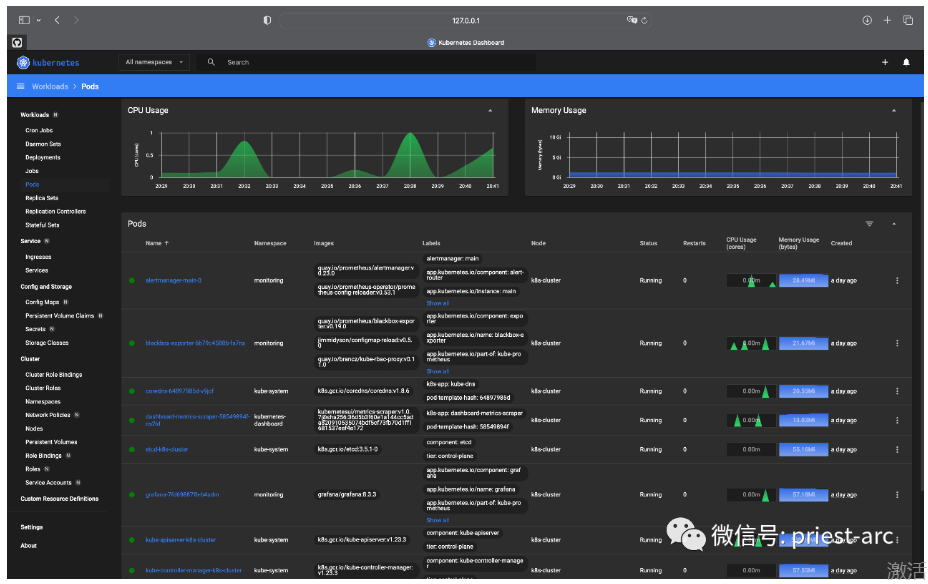

此时，我们基于 Minikube Dashboard 查看所部署组件情况，以验证是否正常运行，具体如下所示：

![](/home/attachment/202303/15/162937_167884581374847.png)

此时，再一次查看 svc，如下所示：

[leonli@Leon kube-prometheus ] % kubectl get svc -n monitoring
	NAME                    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                         AGE
	alertmanager-main       ClusterIP   10.105.71.195           9093:30076/TCP,8080:31251/TCP   27h
	alertmanager-operated   ClusterIP   None                    9093/TCP,9094/TCP,9094/UDP      27h
	blackbox-exporter       ClusterIP   10.110.173.86           9115/TCP,19115/TCP              27h
	grafana                 ClusterIP   10.102.213.39           3000:32540/TCP                  27h
	kube-state-metrics      ClusterIP   None                    8443/TCP,9443/TCP               27h
	node-exporter           ClusterIP   None                    9100/TCP                        27h
	prometheus-adapter      ClusterIP   10.100.47.174           443/TCP                         27h
	prometheus-k8s          ClusterIP   10.104.130.93           9090/TCP,8080/TCP               27h
	prometheus-operated     ClusterIP   None                    9090/TCP                        27h
	prometheus-operator     ClusterIP   None                    8443/TCP                        27h

至此，整个 Prometheus Stack 相关组件已成功部署完成。

**> Web 访问**

基于 svc，我们可以看到，默认情况下所有 Service 都是基于 Cluster IP 类型，所有资源只能在集群内部相互访问。因此，如果需要外部 Web 访问，需要调整 Service 类型为 NodePort ，才能保证节点可正常访问。

这里，我们可以有如下方法进行操作：

1、Kubernetes Dashboard UI 界面操作

2、Yaml 文件调整

无论基于哪种方式，无非需要重新定义 type: NodePort，使其能够基于此访问进行交互。执行完如下所示：

[leonli@Leon kube-prometheus ] % kubectl get svc -n monitoring
	NAME                    TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                         AGE
	alertmanager-main       NodePort    10.105.71.195           9093:30076/TCP,8080:31251/TCP   27h
	alertmanager-operated   ClusterIP   None                    9093/TCP,9094/TCP,9094/UDP      27h
	blackbox-exporter       ClusterIP   10.110.173.86           9115/TCP,19115/TCP              27h
	grafana                 NodePort    10.102.213.39           3000:32540/TCP                  27h
	kube-state-metrics      ClusterIP   None                    8443/TCP,9443/TCP               27h
	node-exporter           ClusterIP   None                    9100/TCP                        27h
	prometheus-adapter      ClusterIP   10.100.47.174           443/TCP                         27h
	prometheus-k8s          ClusterIP   10.104.130.93           9090/TCP,8080/TCP               27h
	prometheus-operated     ClusterIP   None                    9090/TCP                        27h
	prometheus-operator     ClusterIP   None                    8443/TCP                        27h

此时，我们通过 _http://localhost:3000_ 等 Web 方式访问 Grafana，账户 admin/admin ，如下所示：

![](/home/attachment/202303/15/162937_167884594198921.png)

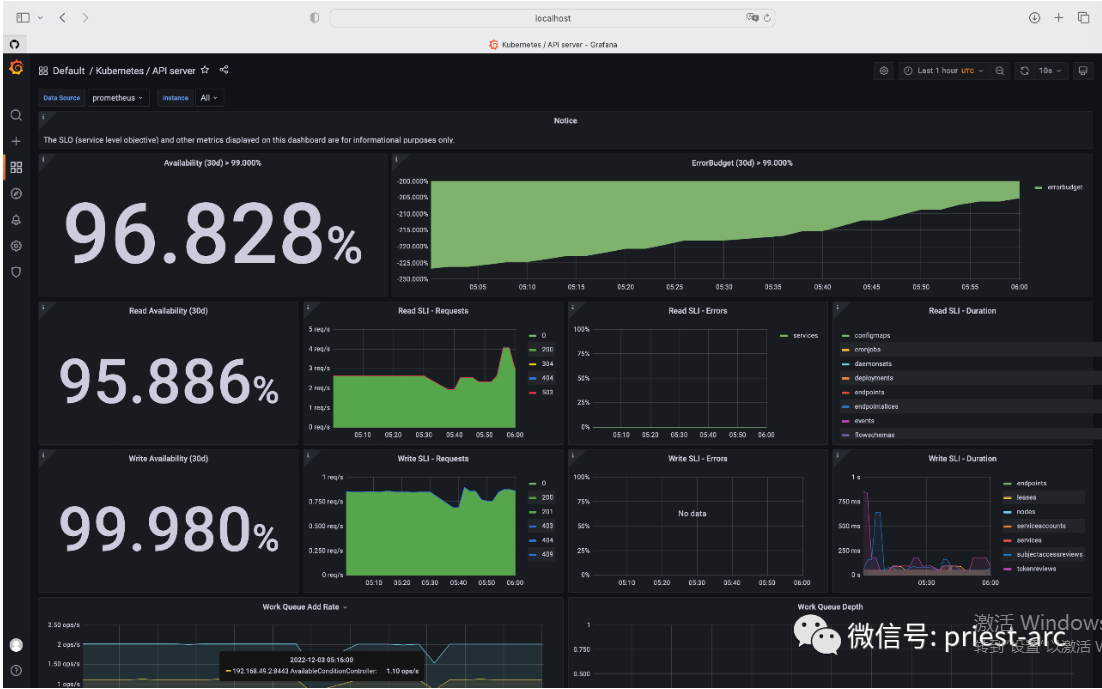

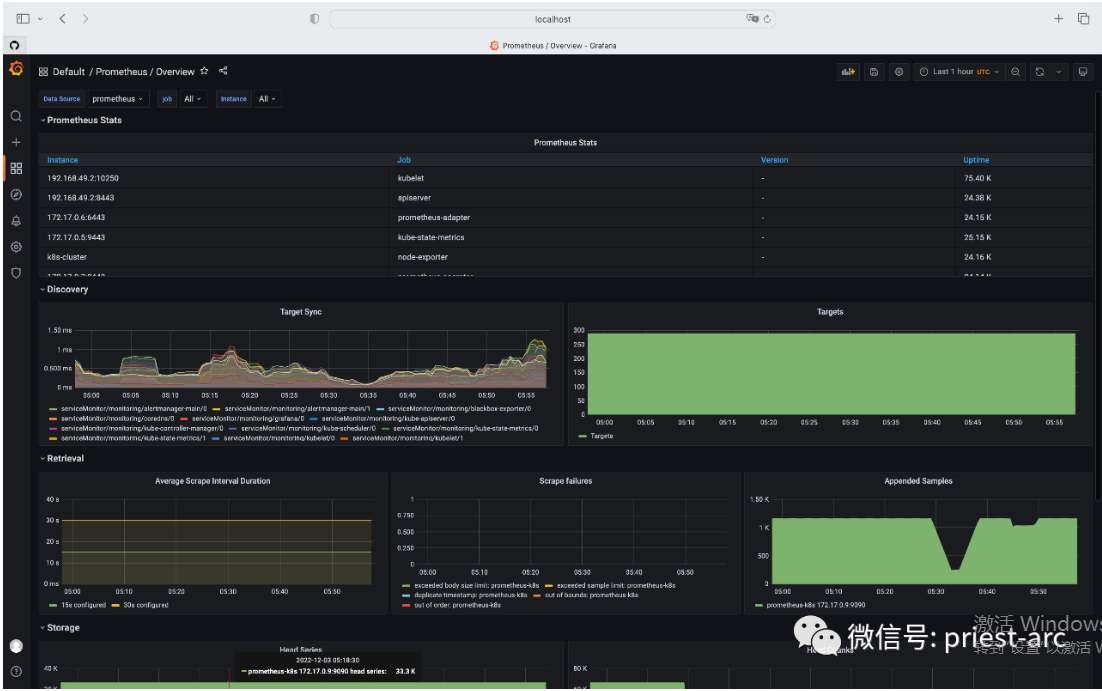

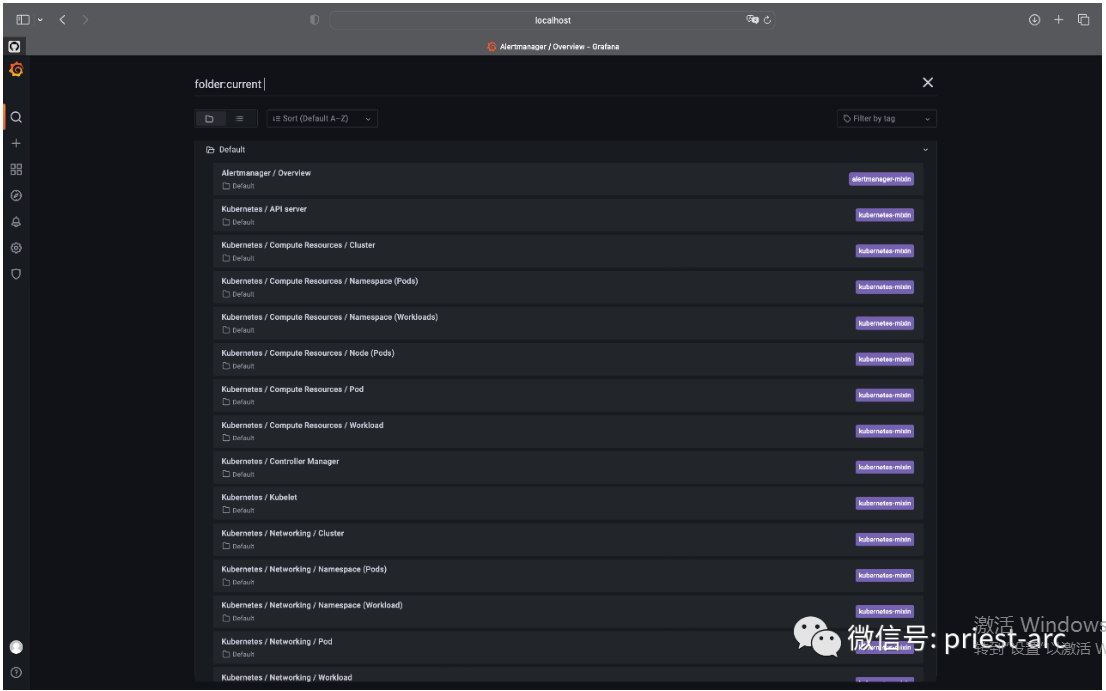

此时，进入首页，我们可以看到，如下信息：

![](/home/attachment/202303/15/162937_167884596151582.png)

![](/home/attachment/202303/15/162937_167884597598330.png)

![](/home/attachment/202303/15/162937_167884598990467.png)

如上为 Helm 快速部署 Prometheus Stack 实践解析，希望对大家有用。关于更多需要了解的信息，欢迎大家交流、关注！

Prometheus Kubernetes

著作权归作者所有

如果觉得我的文章对您有用，请点赞。您的支持将鼓励我继续创作！

添加新评论0 条评论

Ctrl+Enter 发表

匿名评论

一文搞懂基于 Helm 部署 Prometheus Stack 全家桶

添加新评论0 条评论

文章目录收起目录

作者其他文章

相关文章

相关问题

相关资料
