K8s:基于命令行终端UI的管理工具 K9s

K9s 是一个基于终端的管理 Kubernetes 集群的工具，旨在简化 Kubernetes 集群管理。和 kubebox 有些类似， K9s 同样可以持续监控集群的变化，并且可以提供与集群资源交互的快捷命令。如果说管理集群受限，只有一个 终端你可以使用，那么 k9s 是一个不错的选择.

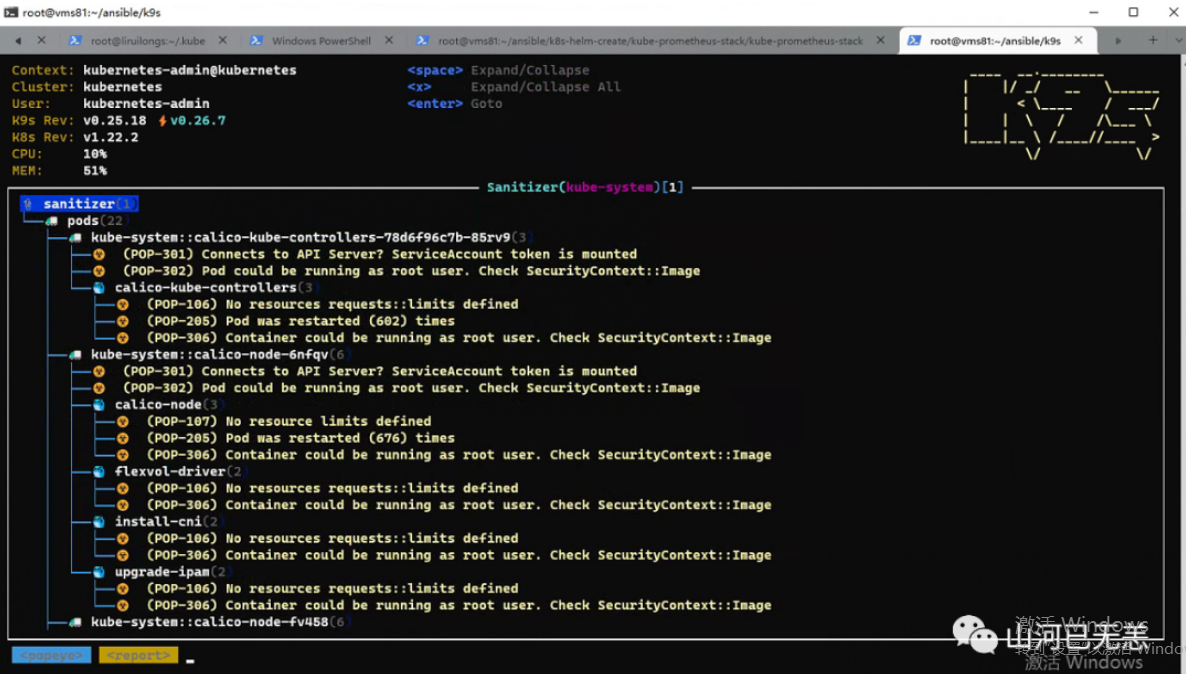

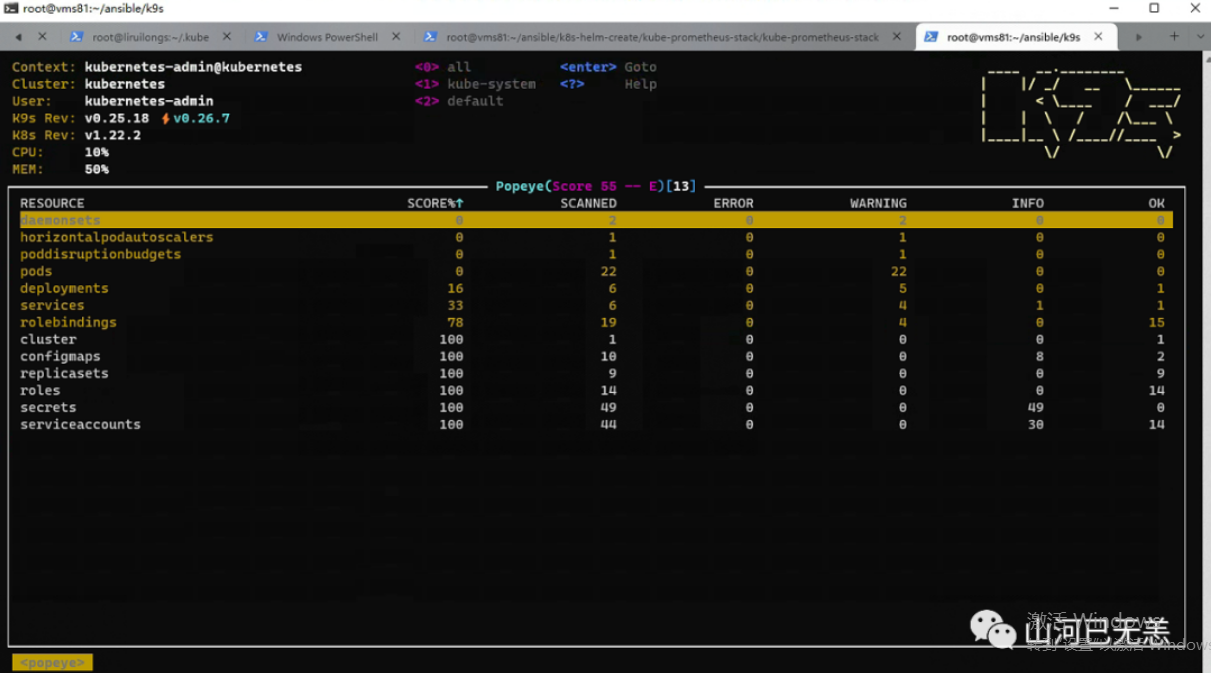

K9s 有一些特殊功能，可以显示 Kubernetes 资源之间依赖关系的 xray、显示集群高级状态的 pulse，以及扫描和报告已部署资源和配置问题的popeye 。

安装下载

window 客户端安装

PS C:\\Program Files> choco install k9s
Chocolatey v1.1.0
Installing the following packages:
k9s
By installing, you accept licenses for the packages.
Progress: Downloading kubernetes-cli 1.26.0... 100%
Progress: Downloading k9s 0.26.7... 100%

kubernetes-cli v1.26.0 [Approved]
kubernetes-cli package files install completed. Performing other installation steps.
The package kubernetes-cli wants to run 'chocolateyInstall.ps1'.
Note: If you don't run this script, the installation will fail.
Note: To confirm automatically next time, use '-y' or consider:
choco feature enable -n allowGlobalConfirmation
Do you want to run the script?([Y]es/[A]ll - yes to all/[N]o/[P]rint): all

Extracting 64-bit C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools\\kubernetes-client-windows-amd64.tar.gz to C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools...
C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools
Extracting 64-bit C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools\\kubernetes-client-windows-amd64.tar to C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools...
C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools
 ShimGen has successfully created a shim for kubectl-convert.exe
 ShimGen has successfully created a shim for kubectl.exe
 The install of kubernetes-cli was successful.
  Software installed to 'C:\\ProgramData\\chocolatey\\lib\\kubernetes-cli\\tools'

k9s v0.26.7 [Approved]
k9s package files install completed. Performing other installation steps.
Extracting 64-bit C:\\ProgramData\\chocolatey\\lib\\k9s\\tools\\k9s_Windows_x86_64.tar.gz to C:\\ProgramData\\chocolatey\\lib\\k9s\\tools...
C:\\ProgramData\\chocolatey\\lib\\k9s\\tools
Extracting 64-bit C:\\ProgramData\\chocolatey\\lib\\k9s\\tools\\k9s_Windows_x86_64.tar to C:\\ProgramData\\chocolatey\\lib\\k9s\\tools...
C:\\ProgramData\\chocolatey\\lib\\k9s\\tools
 ShimGen has successfully created a shim for k9s.exe
 The install of k9s was successful.
  Software installed to 'C:\\ProgramData\\chocolatey\\lib\\k9s\\tools'

Chocolatey installed 2/2 packages.
 See the log for details (C:\\ProgramData\\chocolatey\\logs\\chocolatey.log).
PS C:\\Program Files>

下载之后，需要准备好 kubeconfig 文件，放到默认加载的位置

PS C:\\Users\\山河已无恙\\.kube> ls


目录: C:\\Users\\山河已无恙\\.kube


Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
d-----         2023/1/14      7:48                cache
-a----         2023/1/14     10:19           5682 config
PS C:\\Users\\山河已无恙\\.kube> cat .\\config
apiVersion: v1
clusters:
- cluster:
certificate-authority-data:
.......................

通过命令行启动

PS C:\\ProgramData\\chocolatey\\lib\\k9s\\tools> .\\k9s.exe

Linux 客户端安装

下载安装包

┌──[root@vms81.liruilongs.github.io]-[~/ansible/k9s]
└─$curl -sS https://webinstall.dev/k9s | bash

Thanks for using webi to install 'k9s@stable' on 'Linux/x86_64'.
Have a problem? Experience a bug? Please let us know:
    https://github.com/webinstall/webi-installers/issues

Lovin' it? Say thanks with a Star on GitHub:
    https://github.com/webinstall/webi-installers

Downloading k9s from
https://github.com/derailed/k9s/releases/download/v0.26.7/k9s_Linux_x86_64.tar.gz
failed to download from https://github.com/derailed/k9s/releases/download/v0.26.7/k9s_Linux_x86_64.tar.gz

解压直接运行

┌──[root@vms81.liruilongs.github.io]-[~/ansible/k9s]
└─$tar -zxvf k9s_Linux_x86_64.tar.gz
LICENSE
README.md
k9s
┌──[root@vms81.liruilongs.github.io]-[~/ansible/k9s]
└─$ls
k9s  k9s_Linux_x86_64.tar.gz  LICENSE  README.md
┌──[root@vms81.liruilongs.github.io]-[~/ansible/k9s]

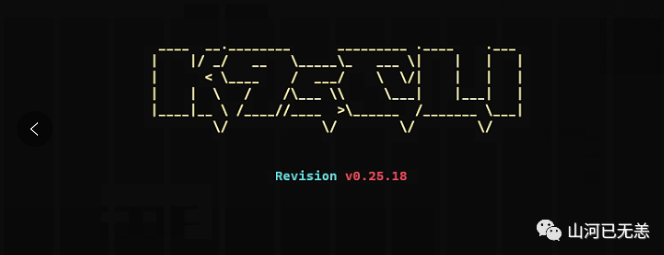

└─$./k9s

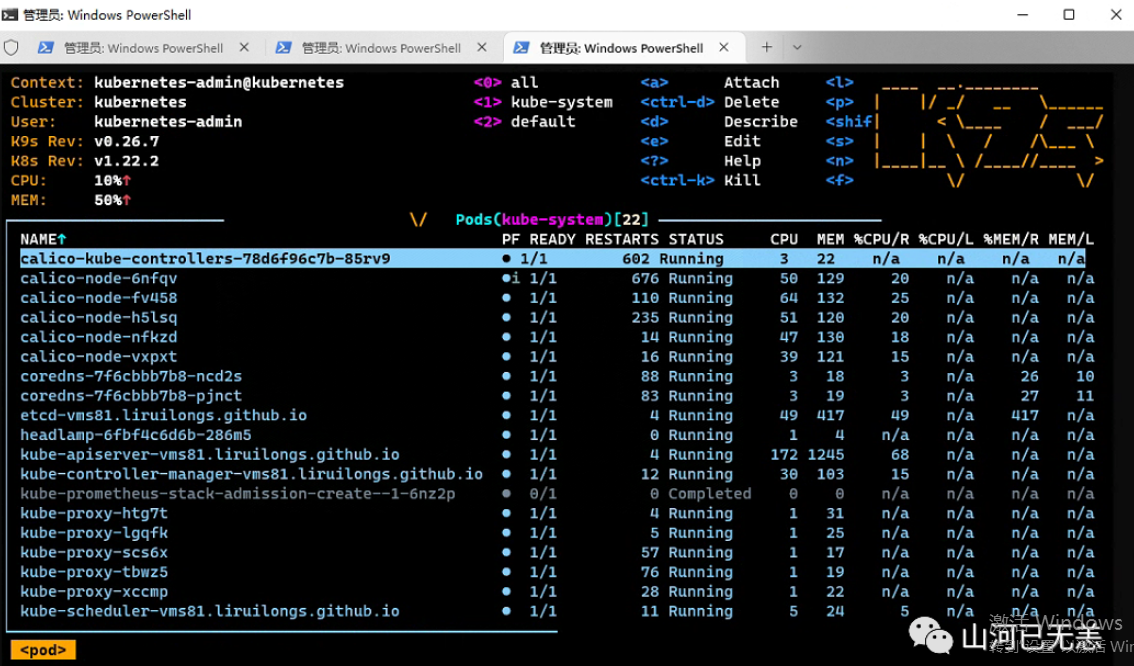

查看当前集群资源的统计信息。

docker 安装

也可以通过docker 直接运行

┌──[root@vms81.liruilongs.github.io]-[~/ansible/k9s]
└─$docker run --rm -it -v ~/.kube/config:/root/.kube/config docker.io/derailed/k9s

查看资源状态信息

查看资源依赖关系

热键
